1、Product design in accordance with NB/T 47044 and ASME B16.34 standards.

2、Valve body cavity adopts pressure self-tight sealing structure (Wood seal), the higher the pressure of the valve body cavity the better the sealing performance.

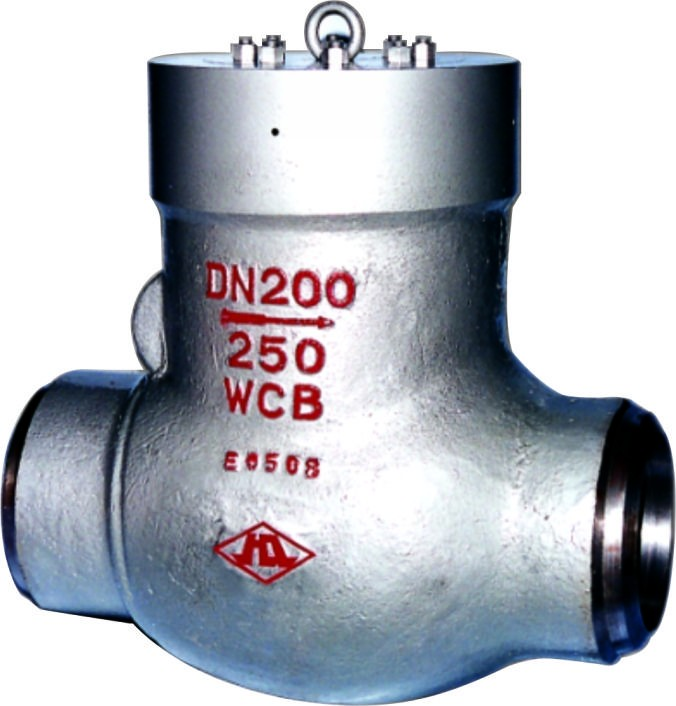

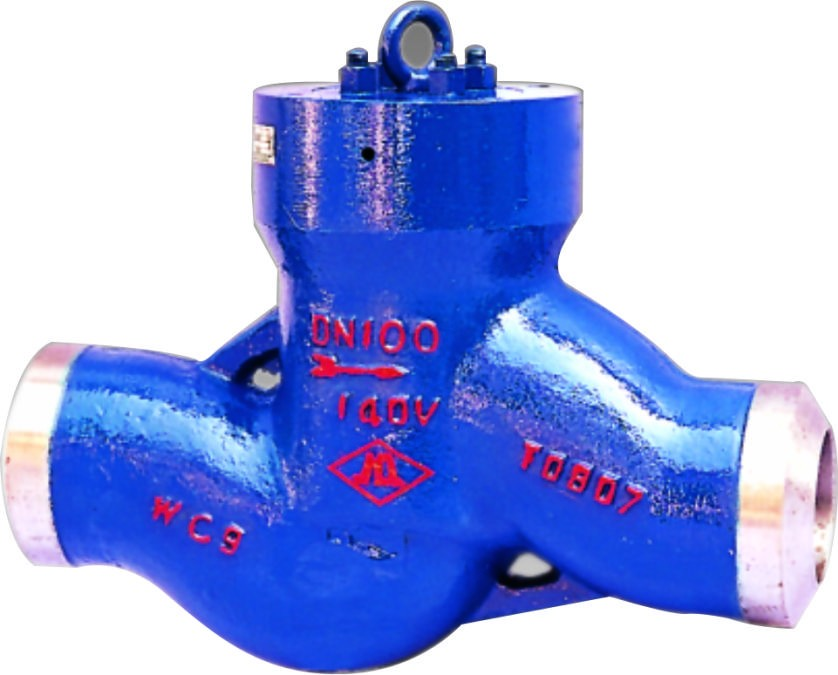

3、Swing-open structure, small flow resistance.

4、The valve seat and valve sealing surface are made of cobalt-based hard alloy surfacing or plasma spray welding, which has good resistance to high temperature, abrasion and scuffing.

• Product Standard: DL/T 923, JB/T 3595, NB/T 47044, ASME B16.34
• Nominal pressure: PN160-PN630 (900LB-3500LB), P54100V, P54140V, P54170V, P57100V, P57140V, P57170V.
• Nominal diameter: DN50-DN350(2″-14″)

Main body material:

1、WCB、ZG20CrMo、Cr5Mo、ZG2OCrMoV、ZG15Cr1MoV

2、25#、12Cr1MoV

3、ASTM A216 WCB、ASTM A217 WC6、ASTM A217 WC9、ASTM A217 C12A

4、ASTM A105 ASTM, A182F11 ASTM A182F22, ASTM A182 F91, A182 F92

• Use temperature: -29 ℃ -610 ℃
• Applicable medium: water, steam, etc.
• Connection: welding
